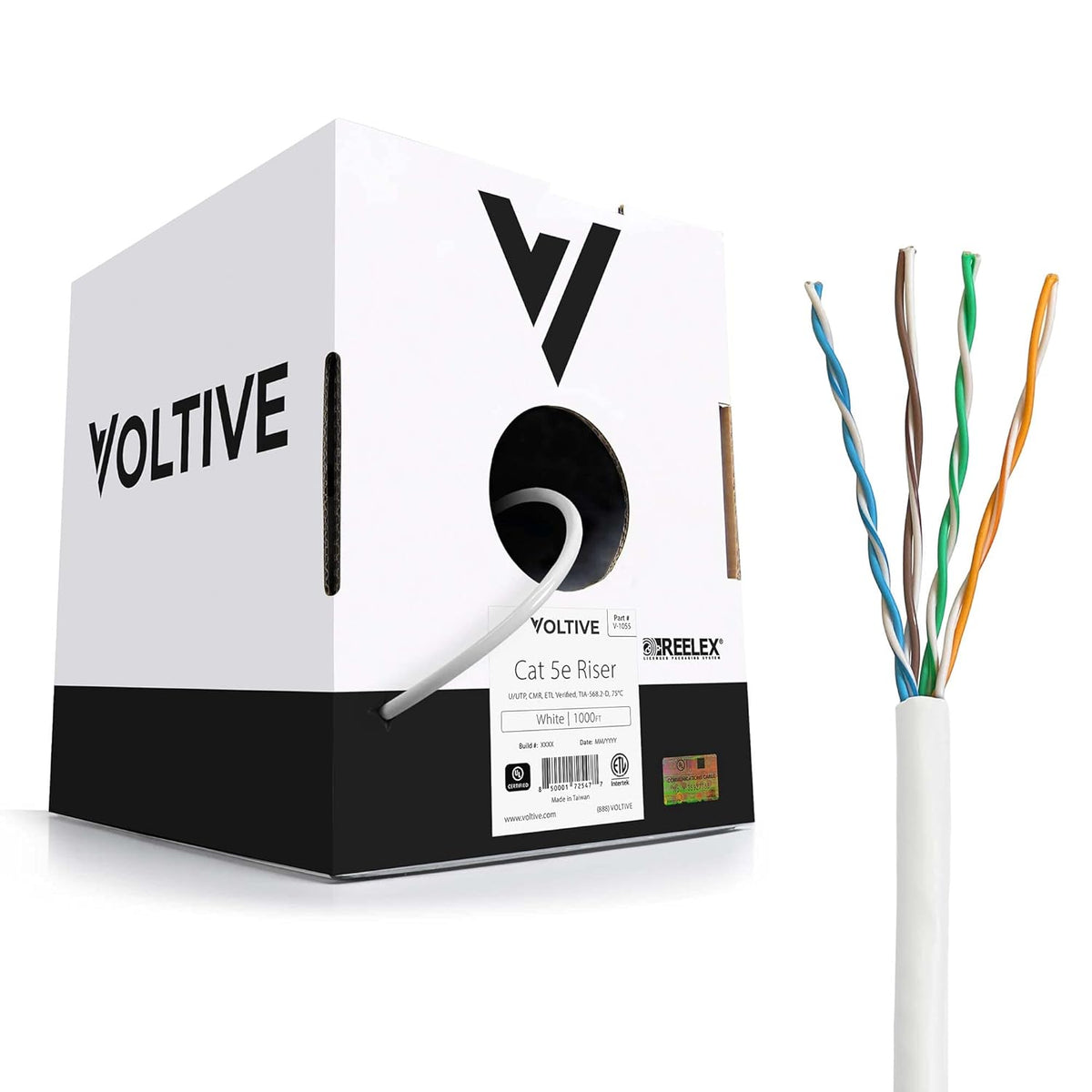

White 1000ft Cat5e Riser Bulk Ethernet Cable O54364
White 1000ft Cat5e Riser Bulk Ethernet Cable O54364
CAT 5E NETWORK CABLE. 24 gauge, 4 pair, solid copper conductors, unshielded (UTP). 1 Gigabit and 2.5 Gigabit speeds up to 328ft. ETL Verified. Tested to 350MHz. PoE and PoE+.
OXYGEN-FREE COPPER (OFC). Oxygen-free bare copper conductors result in less signal loss and are more durable than conductors made of copper-clad aluminum (CCA).
RISER RATED. Riser (CMR) fire safety rating for indoor installation in walls, risers, and other non-plenum spaces. UL Certified/Listed.
STANDARDS & WARRANTY. Performance (ETL Verified): ANSI/TIA-568.2-D, ISO/IEC 11801-1, IEC 61156-5. Power over Ethernet: IEEE 802.3af/at. Fire safety: UL 1666. Construction: UL 444, CSA 22.2 No. 214, RoHS. Includes Voltive 20 year warranty.
TIME SAVING FEATURES. Patented winding technology & massive payout hole eliminate kinks and tangles. Reinforced handles, super-durable cardboard, & water resistant coating keep the box intact. Ripcord reduces time spent stripping the jacket. Jacket printed with UL information, re-order part number, and foot markers which indicate precisely how much wire has been used and how much is remaining.
Performance & Specs
We build cable right: no sub-standard materials and no reduced conductor or jacket thickness. In short, this is the cable we would install in our own homes/business:
- Category 5e LAN cable
- 4 twisted pairs of 24 gauge solid conductors
- 100% solid bare copper conductors
- Standard TIA/EIA conductor colors
- Unshielded twisted pair (U/UTP)
- 1000BASE-T and 2.5GBASE-T up to 328 feet, sweep tested to 350MHz
- ANSI/TIA-568.2-D (2018), ISO/IEC 11801-1, IEC 61156-5 (Edition 2.1)
- Power over Ethernet: IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
- White outer jacket
- 1000 foot box
Time Saving Features
Networking cable isn't the most exciting product in the world, but we still found a way to pack ours full of features that will save you time and and eliminate frustration:
- Proprietary winding technology and massive payout hole combine to eliminate kinks and tangles as wire is pulled out of the box
- Reinforced handles, super-strong cardboard, and a water resistant coating ensure that the box can withstand a lot of abuse
- Rip cord makes it easy to remove the outer jacket when terminating
- Jacket printing includes UL information, re-order part number, and foot markers which tell you precisely how much wire is remaining
Ratings
We take fire-safety ratings seriously. That's why all of our wire is tested by Underwriters Laboratories (UL), the industry's most stringent testing laboratory. This cable is rated for the following:
- Riser (CMR) rated for indoor installation in walls, risers, and other non-plenum spaces.
Always consult your local building code and/or a licensed electrician if you're unsure about whether a wire or cable is suitable for your use case.
